Cinelli GAZZETTA
Farben/colors:
bel nero
bel
giallo
+ bel blu
Rahmengrößen/sizes: 50 - 52 - 54 - 56 - 58 - 60 Rohrsatz/tube set: Columbus - Stahl/steel Gabel/fork: Columbus - steel - 1 1/8"
Preis/price: 580,00 Euro - Rahmen + Gabel!/Frame + fork!
Der "single speed" - Rahmen für alle Gelegenheiten und zum "posing" vor der Eisdiele!

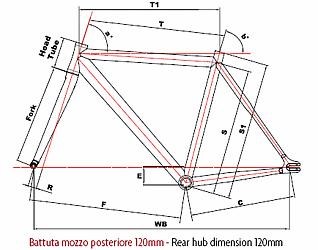

Abmessungen und Geometrie - GAZZETTA
Die Tabellenmaße gelten für GAZZETTA
| Größe/size | Traditionelle Maße | S | T | Steuerrohr | a° | b° | R | C | F | WB | E | Gabel |
| XS | 500mm | 500mm | 520mm | 100mm | 73° | 75° | 35mm | 385mm | 560mm | 939mm | 58mm | 368mm |
| S | 520mm | 520mm | 535mm | 115mm | 73° | 75° | 35mm | 385mm | 568mm | 949mm | 58mm | 368mm |
| M | 540mm | 540mm | 545mm | 144mm | 74,5° | 75° | 35mm | 385mm | 573mm | 951mm | 58mm | 368mm |
| L | 560mm | 560mm | 555mm | 160mm | 74,5° | 74,5° | 35mm | 385mm | 573mm | 957mm | 58mm | 368mm |
| XL | 580mm | 580mm | 565mm | 175mm | 74,5° | 74° | 35mm | 385mm | 583mm | 962mm | 58mm | 368mm |
| XXL | 600mm | 600mm | 575mm | 190mm | 75° | 74° | 35mm | 385mm | 587mm | 962mm | 58mm | 368mm |
