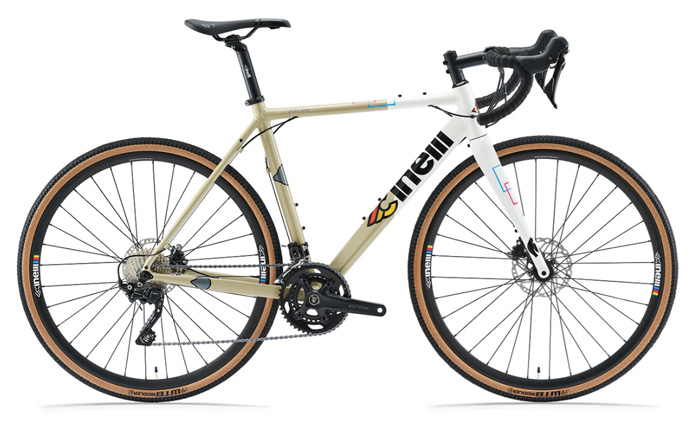

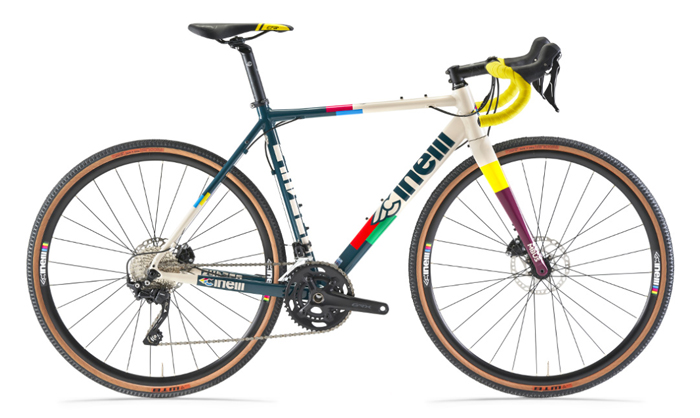

Cinelli ZYDECO
Farben/colours:
yellow and grey
Rahmengrößen/size: XS-S-M-L-XL
Rohrsatz/tube set: Columbus - Zonal
Gabel/fork: Columbus – Tusk
Gruppe/group: Shimano 105/FSA
Lenker/handlebar: Cinelli Lux
Vorbau/stem: Cinelli Lux
Lenkerband/stem: Cinelli – Cork – Ribbon
Laufräder/wheelset: Fulcrum Racing 5
Reifen/tyres: Vittoria
Sattelstütze/seatpost: Cinelli Lux
Sattel/saddle: Cinelli
Pedale/pedals: Ohne/Not included!
Preis/price: - 2250,00 Euro
Die Cinelli - Maschine für grobes Gelände!
The Cinell - machine for cyclocross!

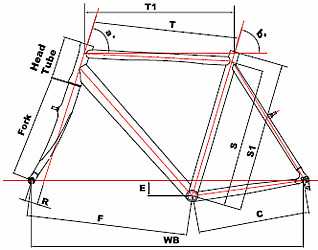

Abmessungen und Geometrie - ZYDECO
Die Tabellenmaße gelten für: ZYDECO
| Größe/size | S1 | S | T1 | T | Steuerrohr | a° | b° | R | C | F | WB | E | Gabel |
| S | 510mm | 473mm | 520mm | 516mm | 110mm | 71° | 74° | 45mm | 425mm | 585mm | 1003mm | 58mm | 387mm |
| M | 535mm | 497mm | 540mm | 534mm | 130mm | 72° | 74° | 45mm | 425mm | 592mm | 1010mm | 58mm | 387mm |
| L | 560mm | 524mm | 560mm | 553mm | 155mm | 73° | 73° | 45mm | 425mm | 603mm | 1021mm | 58mm | 378mm |
| XL | 590mm | 550mm | 580mm | 572mm | 180mm | 73° | 73° | 45mm | 425mm | 612mm | 1030mm | 58mm | 378mm |
| XXL | 615mm | 576mm | 600mm | 591mm | 205mm | 73° | 73° | 45mm | 425mm | 632mm | 1050mm | 58mm | 378mm |
